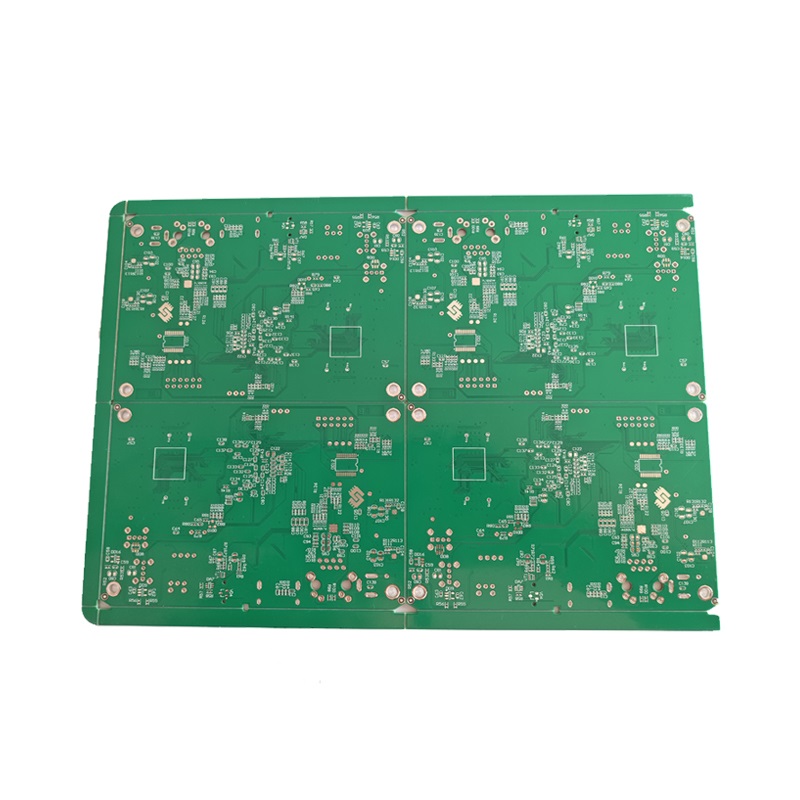

PCBs with up to 18 layers
100% Electrical Testing
Min Track/Spacing 0.1mm/4mil
Min Hole Size:0.2mm
High Density Interconnect PCBs
High-Temp,FR4,Flex,HDI,Rogers,etc
Laser Direct Imaging (LDI)
Special colors & -lacquers
Lead-Free compliant PCBs
Edge Plating
Impedance control
Blind,Buried and Plugged Vias
Custom Stackup
Carbon Mask
Via in pad
Via filled with resin
Countersinks/Counterbores
Z-axis milling
Half-cut/Castellated Holes
